Steiner 450 specifications

Dimensions:

Front PTO clutch: Warner® CMS 250 Series Electric Clutch/Brake
Hydraulic outlets: Quick Couplers-Front
Overall width: 44.5″, 66.5″ with dual wheels
Overall length: 77″ with ROPS up
Overall height: 73.5″ with ROPS up; 55″ with ROPS folded
Wheelbase: 43.5″ front to rear axle
Minimum ground clearance: 4.75″
Frame oscillation: 9″
Turning radius: 43.5″
Frame articulation: 36 degrees

Engine Options:

75-75025: Kubota® D902
75-75032: Kubota® WG972
75-75037: Vanguard™ M61 EFI

Hydraulics:

Pump: Turolla Group 2 Series Fixed Displacement, Stacked Configuration
Flow capacity (gpm): 6 gpm @ 3600 RPM
Lift, steering, auxiliary pressure: 1750 PSI
Hydraulic oil capacity: 5.25 US Gallons

Transmission:
Drive train: Eaton® Model 70160, Variable Displacement Piston Pump
Transaxles: (2) Peerless 2600 Dual Range
Speeds: 0-9.5 MPH forward, High; 0-6 MPH reverse, Low
Steering: Hydraulic Power Steering
Brakes: Dual Disc and Front and Rear Axles

Attachment Drive:

Front PTO clutch: Warner® CMS 250 Series Electric Clutch/Brake
Hydraulic outlets: Quick Couplers-Front

Hitch:

Front: Steiner Quick-Hitch™ System, with standard front release control or optional release from seated position
Back: Standard 2″ receiver hitch, with optional category 1 three-point hitch

Steiner 450 specifications

Dimensions:

Front PTO clutch: Warner® CMS 250 Series Electric Clutch/Brake
Hydraulic outlets: Quick Couplers-Front
Overall width: 44.5″, 66.5″ with dual wheels
Overall length: 77″ with ROPS up
Overall height: 73.5″ with ROPS up; 55″ with ROPS folded
Wheelbase: 43.5″ front to rear axle
Minimum ground clearance: 4.75″
Frame oscillation: 9″
Turning radius: 43.5″
Frame articulation: 36 degrees

Engine Options:

75-75025: Kubota® D902
75-75032: Kubota® WG972
75-75037: Vanguard™ M61 EFI

Hydraulics:

Pump: Turolla Group 2 Series Fixed Displacement, Stacked Configuration
Flow capacity (gpm): 6 gpm @ 3600 RPM
Lift, steering, auxiliary pressure: 1750 PSI
Hydraulic oil capacity: 5.25 US Gallons

Transmission:
Drive train: Eaton® Model 70160, Variable Displacement Piston Pump
Transaxles: (2) Peerless 2600 Dual Range
Speeds: 0-9.5 MPH forward, High; 0-6 MPH reverse, Low
Steering: Hydraulic Power Steering
Brakes: Dual Disc and Front and Rear Axles

Attachment Drive:

Front PTO clutch: Warner® CMS 250 Series Electric Clutch/Brake
Hydraulic outlets: Quick Couplers-Front

Hitch:

Front: Steiner Quick-Hitch™ System, with standard front release control or optional release from seated position
Back: Standard 2″ receiver hitch, with optional category 1 three-point hitch

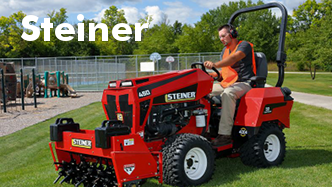

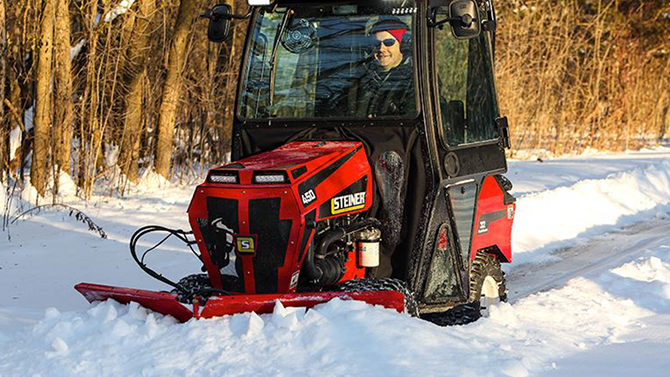

THE ALL-NEW STEINER 450 TRACTOR

Calling the new Steiner 450 a tractor is kind of like saying Mt. Everest is just a big hill. And speaking of hills, you’ll feel like the king of them all with the 450’s powerful engines and hydraulics, wide stance, articulating and oscillating frame, and new hydraulic weight transfer and traction boost system. Throw in easy, comfortable operation, and 25 available attachments, and you’ve got more than a tractor — you’ve got a Steiner.

The All_New Steiner 450 Tractor

Calling the new Steiner 450 a tractor is kind of like saying Mt. Everest is just a big hill. And speaking of hills, you’ll feel like the king of them all with the 450’s powerful engines and hydraulics, wide stance, articulating and oscillating frame, and new hydraulic weight transfer and traction boost system. Throw in easy, comfortable operation, and 25 available attachments, and you’ve got more than a tractor — you’ve got a Steiner.
