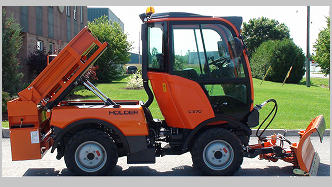

Holder C250/C270 Specs

* C250: Kubota 4-cylinder 4-stroke diesel 50HP
* C270: Kubota 4-cylinder 4-stroke turbo diesel 67HP
* Permanent 4-wheel drive, 4 wheels of the same size
* 25 mph max speed

* Min. external width: 44.5 inches
* Turning circle inside: 54.75 inches

* Cab has air conditioning and 360 degree visibility
* Heated adjustable seat with air-suspension system

Variable acceleration
* Hydrostatic drive
* Transport mode: foot pedal variable speed control
* Working mode: speed control via dial on panel
* Special Driving System (SDS) gives the operator the possibility of speed control via foot pedal independent of constant PTO shaft speed.

Electro-hydraulic attachment relief option available
* Weight of the attachment is automatically distributed throughout the entire vehicle
* The electro-hydraulic control eliminates wheel spinning
* More traction on slopes and slippery ground, increases stability when turning on a slope

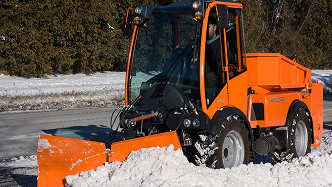

Holder C480 specs

* 77hp 4-cylinder air cooled Deutz turbo-diesel engine
* Permanent 4-wheel drive, 4 wheels of the same size
* 25 mph max speed

* Min. external width: 47.5″
* Turning circle inside: 66.14″

* Cab has air conditioning and 360 degree visibility
* Heated adjustable seat with air-suspension system

Variable acceleration
* Hydrostatic drive
* Transport mode: foot pedal variable speed control
* Working mode: speed control via dial on panel
* Special Driving System (SDS) gives the operator the possibility of speed control via foot pedal independent of constant PTO shaft speed.

Electro-hydraulic attachment relief option available
* Weight of the attachment is automatically distributed throughout the entire vehicle
* The electro-hydraulic control eliminates wheel spinning
* More traction on slopes and slippery ground, increases stability when turning on a slope

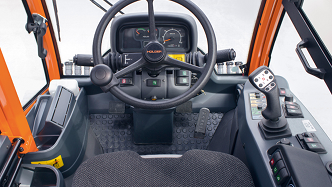

Holder C480 cab and console

Cab
* Comfortable cab with air conditioning and 360° visibility
* Side windows and pop-up roof
* Very spacious even for tall and big drivers
* Heated adjustable seat with air-suspension system

Console

* Individual setting options for the operator
* 1-hand operation
* Film protected control panel
* Programmable joystick
* Driving mode dial for 2 transport and 2 working modes

Holder C992 compact tractor

* 92hp 4-cylinder air cooled Deutz turbo-diesel engine
* Permanent 4-wheel drive, 4 wheels of the same size
* 25 mph max speed

* Min. external width: 4′ 3.5″
* Turning circle inside: 7′

* 1 or 2 person cab
* Cab has air conditioning and 360 degree visibility
* Heated adjustable seat with air-suspension system

Variable acceleration
* Hydrostatic drive
* Transport mode: foot pedal variable speed control
* Working mode: speed control via dial on panel
* Special Driving System (SDS) gives the operator the possibility of speed control via foot pedal independent of constant PTO shaft speed.

Continuously variable transmission
* The optional dual drive system makes it possible to maximize torque on one axle up to 100%, enhancing hill climbing capability.
* Standard hydrostatic drive with wheel motors transfers a maximum torque of 50% for work on level surfaces.
* Block-based construction (heavier, higher power transmission)
* Variable speed control with hydrostat unit
* Dual drive (switch from hydrostatic to mechanical drive from approx. 16 mph [26 km/h]) for fuel consumption optimisation and reduction of wear and noise.

C250-C270 Flail Mower Specs

MFL-060-01
Working width: 60″
Cutting height: 0.7″ to 6.0″
Weight: 869 lbs.

MFL-060-02
Working width: 60″
Cutting height: 0.6″ to 2.2″
Weight: 455 lbs.
